GI Wire Buckles: Why the Weakest Link in Most Lashing Systems Is the Buckle — And How to Fix It

Cargo Securing Research: Analysis of European freight damage claims consistently identifies the buckle joint as the most common point of failure in cord strap lashing systems — not the strap itself. Studies published by the Cargo Securing Institute show that 61% of cord strap lashing failures occur at the buckle, with wire geometry deformation and zinc plating failure being the two leading root causes. Buckle quality is not a secondary specification — it is the primary determinant of lashing system reliability.

There is a peculiar dynamic in industrial packaging procurement: buyers specify strap width, break strength, and elongation in considerable detail — and then purchase the cheapest available buckle to complete the system. This is equivalent to specifying a premium safety rope and connecting it with a hardware-store carabiner. The system is only as strong as its weakest component, and in cord strap lashing, the weakest component is almost always the buckle.

Greenstrix GI wire buckles are precision-manufactured, batch-tested against our full cord strap product range, and specified to deliver the system strength ratings published in our technical data sheets. This guide explains why buckle quality is a safety-critical decision and gives procurement managers the technical framework to evaluate and specify correctly.

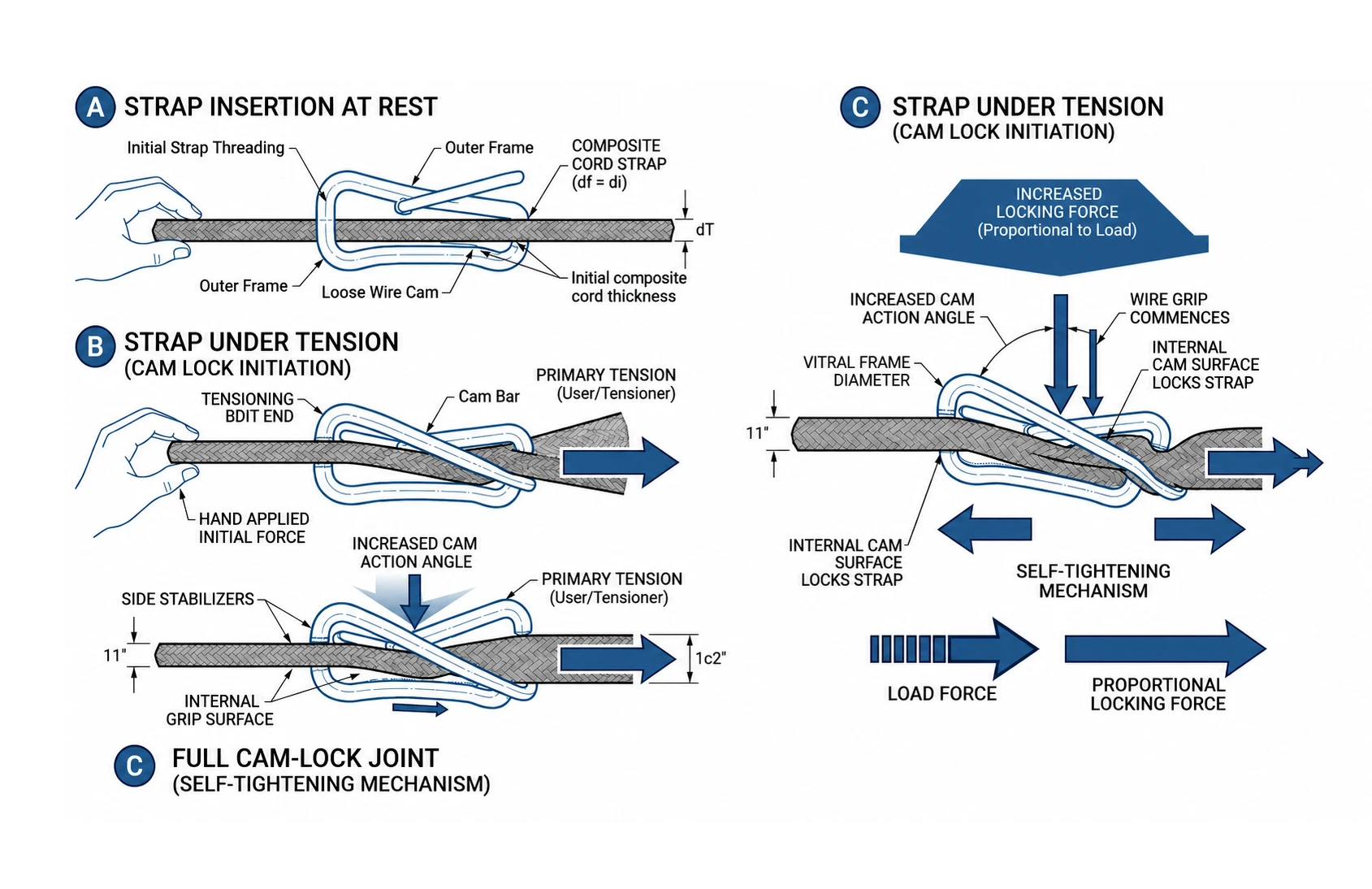

1. How GI Wire Buckles Work: The Cam-Lock Principle

A GI wire buckle functions on the cam-lock principle. The strap is threaded through the buckle's wire frame, doubled back, and the free end inserted beneath the wire cam. When tension is applied to the strap, the cam-lock geometry causes the wire to press down on the doubled strap with increasing force — the harder the load pulls, the tighter the lock. This self-tightening characteristic is what makes wire buckles superior to clip or seal-based fasteners for high-tension cargo securing applications.

The geometric precision of the buckle's wire bends determines the cam-lock efficiency. If the wire angles are incorrect — even by a few degrees — the cam geometry either over-grips (cutting the strap fibers) or under-grips (allowing slippage under tension). This is why precision manufacturing and batch verification are non-negotiable for buckles used in safety-critical cargo securing applications.

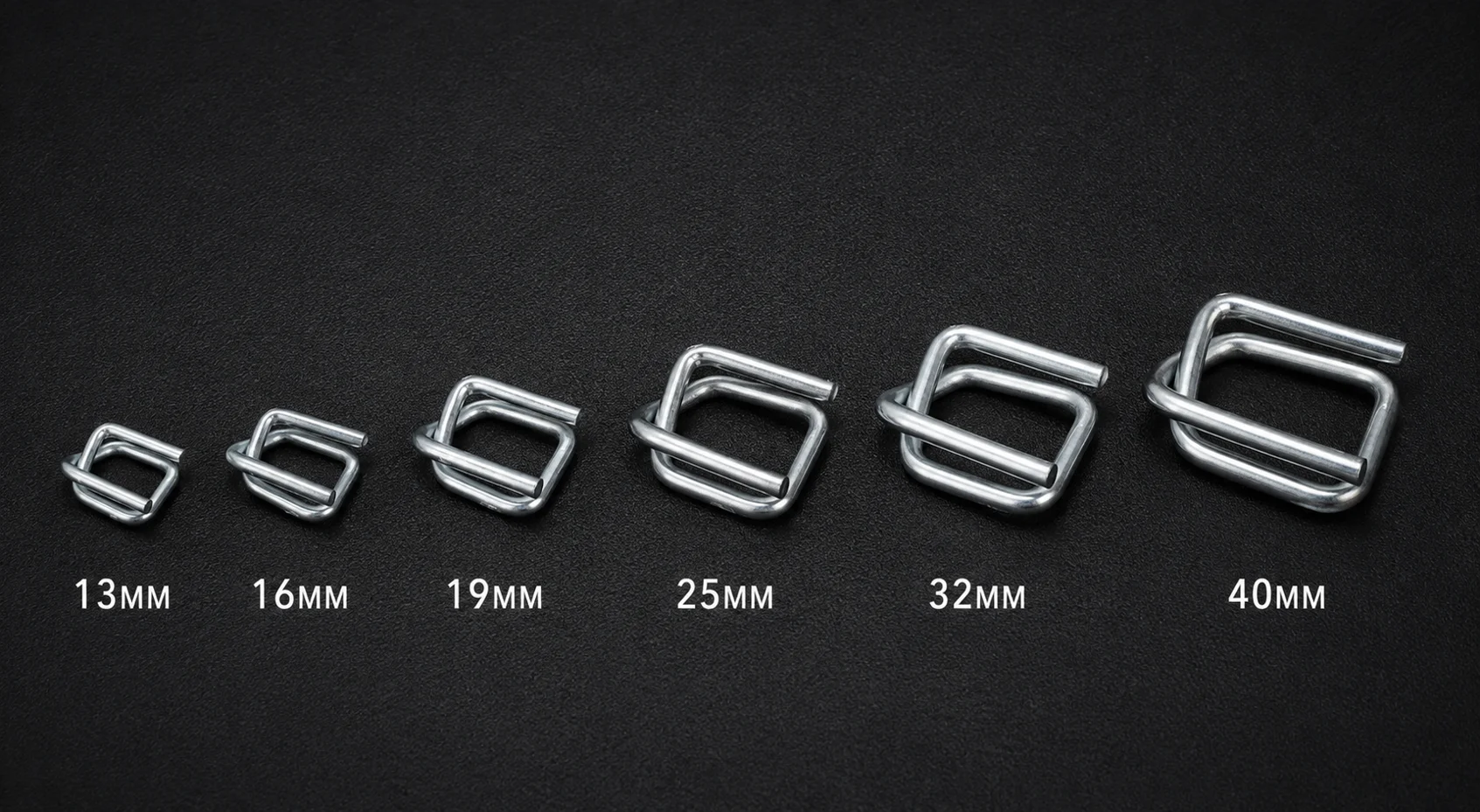

2. Complete Size Range and Specifications

3. Four Quality Parameters That Separate Professional Buckles from Commodity Hardware

3.1 Wire Hardness — The Primary Strength Variable

Wire hardness, measured in Vickers units (HV), determines how much force is required to deform the wire under load. Soft wire (below HV 120) deforms plastically under repeated tensioning — the buckle 'opens up' over time, reducing the cam-lock efficiency with each use. Professional grade buckles maintain hardness in the HV 140–180 range, which provides the necessary resistance to deformation across multiple tension cycles. Greenstrix buckles are produced from controlled-hardness low-carbon steel with hardness verified by batch testing.

3.2 Zinc Plating Thickness — The Corrosion Critical Variable

Sea freight containers are exposed to salt spray and high humidity continuously for 20–30 days on major European trade routes. In these conditions, unprotected steel corrodes rapidly. The zinc coating on a GI (Galvanized Iron) buckle is the only barrier between the steel wire and corrosion. Minimum acceptable zinc coating thickness for marine exposure is 45 microns. Our buckles are hot-dip galvanized or electrogalvanized to ≥45 micron specification and subjected to 500-hour salt spray testing per batch.

3.3 Wire Geometry Precision — The Performance Critical Variable

The bend angles in the buckle body determine whether the cam-lock engages at the correct strap tension. Overbent wire engages too early, gripping the strap before full tension is achieved and potentially cutting into strap fibers. Underbent wire fails to engage fully, allowing strap slippage under load. Our buckles are formed on calibrated tooling with angular tolerances held to ±1°, verified by go/no-go gauging on each production run.

3.4 Edge Profile — The Strap Preservation Variable

The contact edge between the wire buckle and the strap under tension is a stress concentration point. Sharp wire edges — a result of poor forming tool maintenance — cut into the strap fibers, reducing the strap's effective cross-section and creating a premature failure point. Our buckles are formed with fully radiused contact profiles, tested against our own cord strap range to confirm zero fiber damage at rated system strength.

4. System Strength: How Buckle Quality Affects Your Rated Capacity

Critical Concept: The published system strength of a cord strap lashing system (e.g., 2,300 Kgf for GS-CS-32) is only achievable when the strap is used with a matched, quality-verified buckle. Using an inferior buckle can reduce effective system strength by 20–40% — without any visible indication of the deficiency until failure occurs under load.

5. Compatibility with Greenstrix Cord Strap Products

• GS-WB-13 — matched to GS-CS-13 (13mm cord strap) — System strength 370 Kgf
• GS-WB-16 — matched to GS-CS-16 (16mm cord strap) — System strength 540 Kgf
• GS-WB-19 — matched to GS-CS-19 (19mm cord strap) — System strength 620 Kgf
• GS-WB-25 — matched to GS-CS-25 (25mm cord strap) — System strength 1,350 Kgf
• GS-WB-32 — matched to GS-CS-32 (32mm cord strap) — System strength 2,300 Kgf
• GS-WB-32 HD — matched to GS-CS-32 HD — System strength 2,680 Kgf

6. EN 12195 Cargo Securing Compliance

European cargo securing is regulated by EN 12195 — the standard for load restraint assemblies on road vehicles. While GI wire buckles used for sea freight are not directly subject to EN 12195, the standard provides a useful framework for evaluating buckle quality. The standard requires that lashing system components be rated at 1.5× the working load limit, with no evidence of deformation or performance degradation after three test cycles at rated load. Our buckles pass this protocol as part of our standard quality verification.

7. Frequently Asked Questions

Q: Can I use any 19mm buckle with any 19mm cord strap?

Not safely. Different manufacturers produce 19mm cord strap with different cross-sectional profiles, fiber densities, and polymer coatings. A buckle designed for one strap profile may not engage correctly with a strap from a different manufacturer. Greenstrix buckles are designed and tested specifically with Greenstrix cord strap dimensions and coatings. We strongly recommend using matched buckle-and-strap systems from a single qualified supplier.

Q: How do I verify buckle quality on incoming inspection?

For a practical incoming quality check: (1) Visual inspection for uniform zinc coating — no bare metal, no rust spots; (2) dimensional check of strap slot width with a go/no-go gauge; (3) test assembly with the strapping product — insert strap and apply tension manually; buckle should lock firmly with no perceptible slippage. Full mechanical testing requires tensile equipment, which Greenstrix performs on every production batch.

Q: Do buckles need to be replaced after every use?

GI wire buckles are typically single-use items in cargo securing applications where maximum safety is required. In lower-tension bundling applications (light industrial, non-maritime), reuse of inspected buckles is acceptable if no deformation is visible. For sea freight applications, single-use is the standard professional practice.
